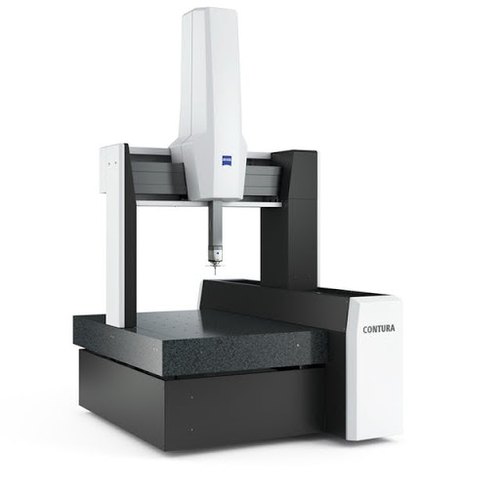

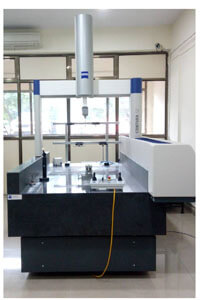

BRIDGE TYPE CMM (ZEISS)

• MAKE - ZEISS
• MODEL - CONTURA G2
• SOFTWARE - CALYPSO
• MACHINE SIZE - X=1000 ,Y=2100, Z=800 mm.
• FACILITIES AVAILABEL - 2D & 3D INSPECTION ,CAD COMPARISION ,CAM DRUM ,SCANNING
• ACCURACY- 1.9 Microns
• CMM TRAINING PROGRAM.

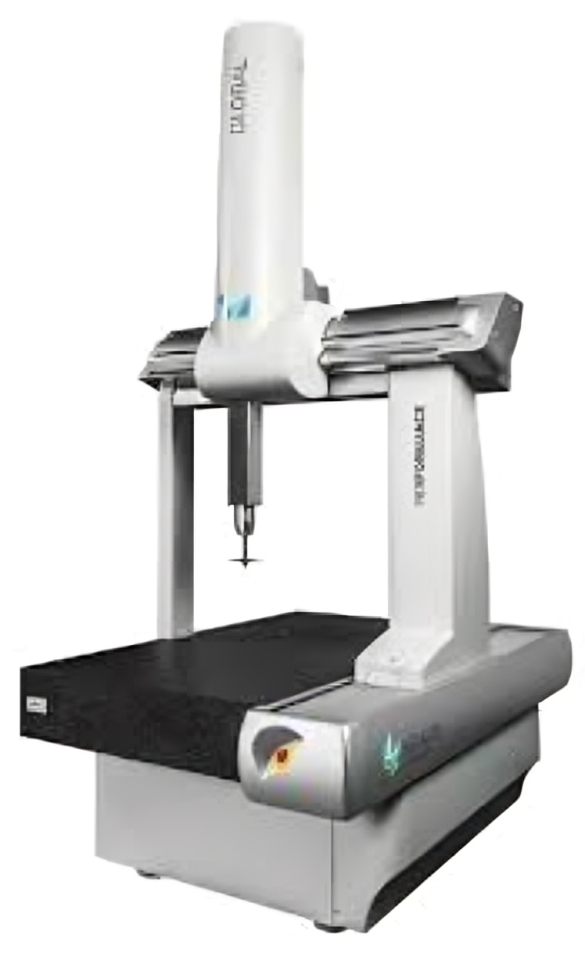

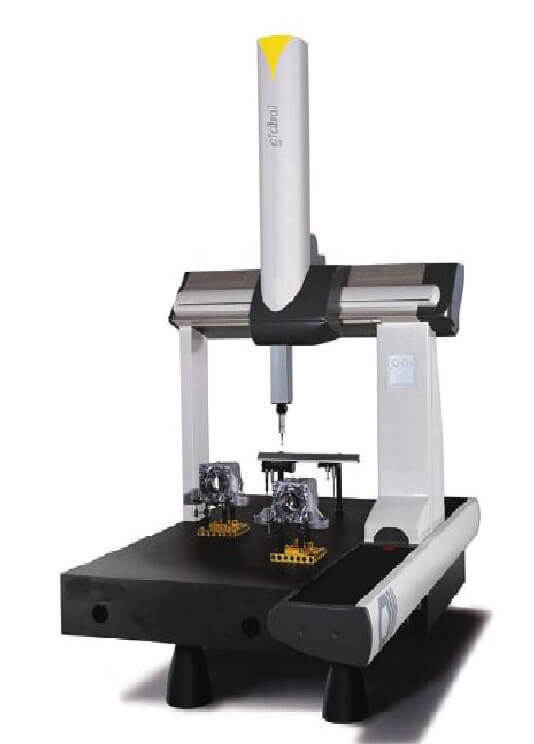

BRIDGE TYPE CMM (HEXAGON)

Our services and products go from Conceptual design of gauges and fixtures for inspection and measurement purposes, to the development of complete solution in the area of dimensional inspection & verification.

• MAKE-HEXAGON METROLOGY
• MODEL-GLOBAL PERFORMANCE (BROWN & SHARP)
• SOFTWARE- PCDMIS CAD ++
• MACHINE SIZE- X=900,Y=1500, Z=800 mm.
• Air Gauges.

FACILITIES AVAILABEL-

• - 2D & 3D INSPECTION
• - CAD COMPARISION.
• - GEAR INSPECTION.
• - SCANNING.
• ACCURACY- 2.0 microns
• CMM TRAINING PROGRAM.

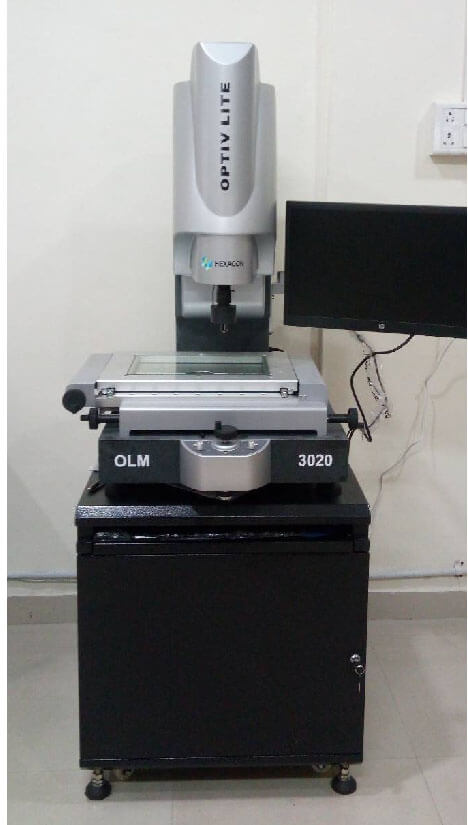

Video Measuring Machine -Hexagon (HEXAGON)

• MAKE- HEXAGON
• MODEL- OPTIVE LITE VISION
• SOFTWARE- PCDMIS
• MACHINE SIZE- X=300 ,Y=200
• CMM Fixture Plate And Clamping Kit.
• ACCURACY - 3 Microns

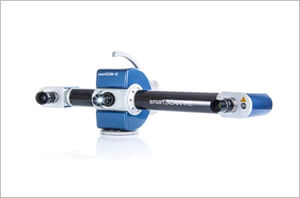

BLUE LIGHT SCANNER (HEXAGON)

CAMERA SENSOR- B/W or COLOR,GIGABIT ETHERNETCAMERA RESOLUTION- 2*5,041,312 PIXEL(2,452*2056)PROJECTION UNIT- MINIATURIZED PROJECTION TECHNIQUEPROJECTION RESOLUTION- 28,723,000 PIXEL(6,144*4675)LIGHT SOURCE- 100 W HIGH POWER-LED(BLUE or WHITE)MINIMUM MEASURING TIME - 1-2 s

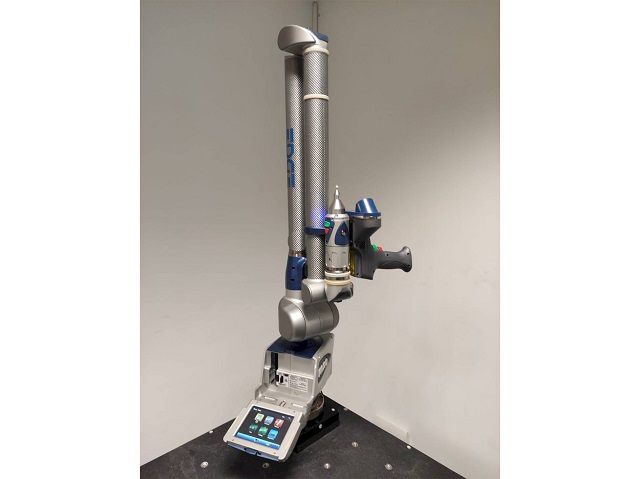

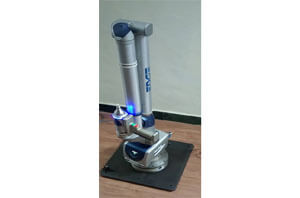

PORTABLE CMM MACHINE (FARO EDGE)

• MAKE- FARO
• MODEL- EDGE
• SOFTWARE- DELCAM ( PT.CLOUD MODEL )
• MACHINE SIZE- 2.7 METER ( 9 FT ).
• CMM Fixture Plate And Clamping Kit.
• FACILITIES AVAILABLE - 2D& 3D INSPECTION ,CAD COMPARISION ,3D LASER
• SCANNER ,REVERSE ENGG SERVICES.
• ACCURACY- 1.9 Microns.
• TRAINING COURSES - DELCAM SOFTWARE

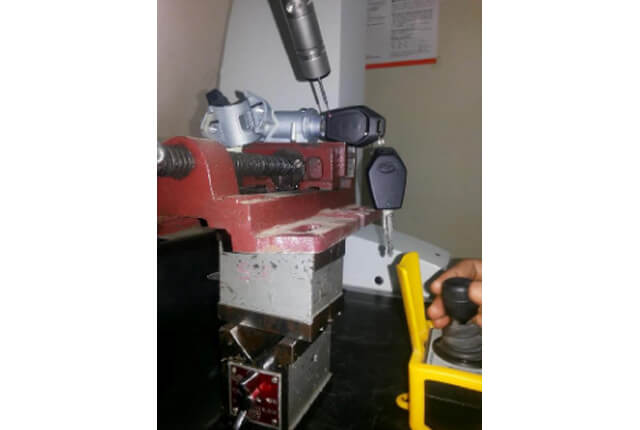

LAYOUT INSPECTION

Layout Inspection is the complete measurement of all part dimensions shown on the design record. A layout inspection may be required by some customers for all products annually unless another frequency is established in a customer approved control plan.Instruments facilities available as below for layout inspection

• 1) Vernier calliper
• 2) Micro meter
• 3) Height gauges
• 4) Vmm inspection
• 5) Cmm inspection
• 6) Portable cmm inspection
• 7) Slip gauge.
• 8) Blue light scanning

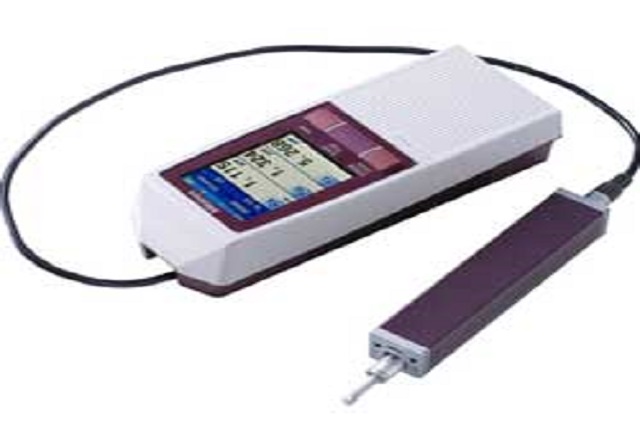

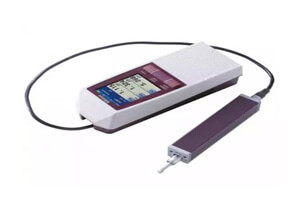

ROUGHNESS TESTING MACHINE (MITUTOYO)

Numerous innovative features combined with high accuracy and an economical price-point mean the Mitutoyo Surftest® SJ-310 surface roughness tester provides real performance value. With high accuracy (resolution of 0.002µm at a measurement range of 25µm), fast measurement speed (max.
The most common method is to use a diamond stylus profilometer. The stylus is run perpendicular to the lay of the surface. The probe usuallytraces along a straight line on a flat surface or in a circular arc around a cylindrical surface. The length of the path that it traces is called the measurement length.
The Surftest SJ-210 is a user-friendly surface roughness measurement instrument designed as a handheld tool that can be carried with you and used on-site.

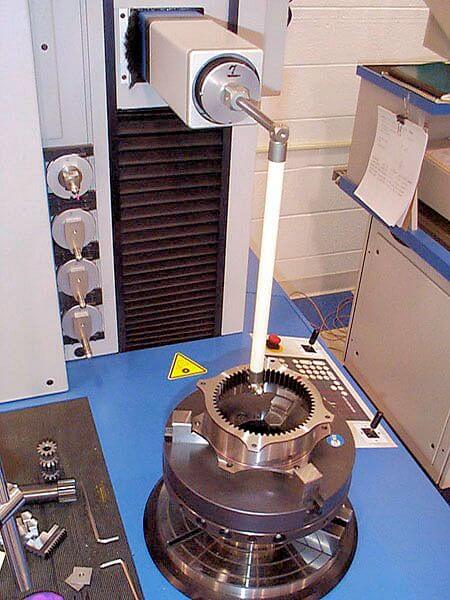

Gear Inspection

• Profile Errors
• Lead Errors
• Pitch Errors
• Runout Errors

Blade

• Aerofoil Measurement
• Stack Axis Relations

Reverse Engineering, Modelling, 3d Model

• Reverse Engineering Process
• Importance of 3D Modeling
• Industry Applications
• Samruddhi Engineering’s Expertise
• Advanced Technologies
